Cone Crusher Installation Guide

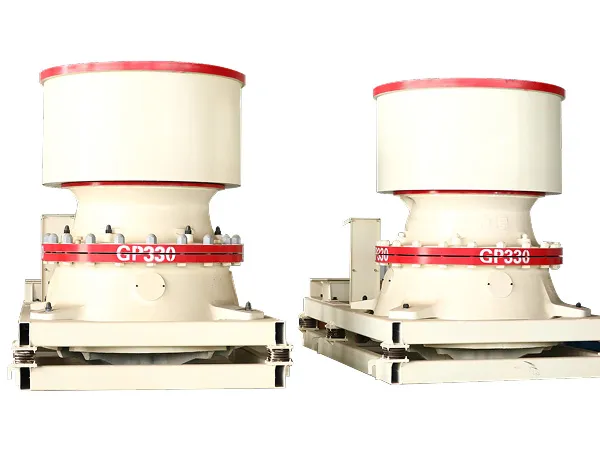

A cone crusher is a key piece of equipment in the mining, quarrying, and aggregate industries. It is widely used for secondary, tertiary, and fine crushing of hard materials such as granite, basalt, limestone, and iron ore. To ensure safe operation, long service life, and optimal performance, proper installation of a cone crusher is critical.

Why Proper Installation Matters

Installing a cone crusher correctly is not only about setting up the machine; it also directly affects production efficiency, equipment lifespan, and maintenance costs. Poor installation can lead to:

Excessive vibration and noise

Uneven wear of crushing parts

Frequent breakdowns and downtime

Reduced output and product quality

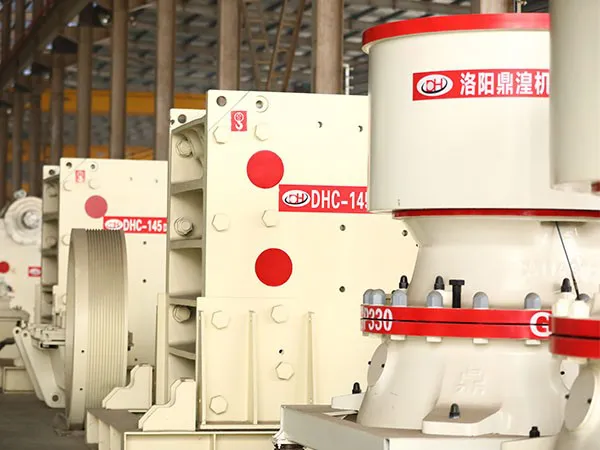

Cone Crusher Installation Guide

Safety First:

Always follow the manufacturer's installation manual.

Use proper personal protective equipment (PPE).

Ensure all lifting operations are carried out safely by trained personnel.

Never work under suspended loads.

Lock out and tag out electrical systems before performing any maintenance or adjustments.

1. Site Preparation:

Foundation: A strong, level concrete foundation is crucial to support the crusher's weight and absorb vibrations. The foundation design should be provided by the crusher manufacturer. Ensure it's cured properly before installation.

Space: Allow sufficient space around the crusher for maintenance, operation, and material flow.

Accessibility: Ensure easy access for personnel and equipment during installation and future servicing.

2. Unloading and Inspection:

Carefully unload all components using appropriate lifting equipment.

Inspect all parts for damage during transit. Report any damage immediately to the supplier.

Verify that all components listed in the packing list are present.

3. Assembling the Main Frame:

Position the main frame on the prepared foundation.

Ensure it is perfectly level using shims if necessary.

Secure the main frame to the foundation using anchor bolts, tightening them according to the manufacturer's specifications.

4. Installing the Eccentric Assembly and Main Shaft:

Carefully lower the eccentric assembly into the main frame.

Install the main shaft. This usually involves aligning it with the eccentric and securing it in place.

Ensure all bearings are properly lubricated according to the manufacturer's guidelines.

5. Installing the Head Assembly and Mantle:

Mount the head assembly onto the main shaft.

Install the mantle (the wear liner on the head) and secure it.

Ensure proper seating and alignment to prevent premature wear and operational issues.

6. Installing the Bowl Liner and Adjustment Ring:

Place the bowl liner (the wear liner in the concave) into the adjustment ring.

Lower the adjustment ring assembly onto the main frame, ensuring it's properly seated and aligned.

7. Installing the Drive System:

Install the electric motor and V-belt drive assembly.

Ensure proper alignment of the motor pulley and crusher pulley to prevent belt wear and inefficiency.

Adjust belt tension as recommended by the manufacturer.

8. Lubrication System Installation:

Install the lubrication system, including the oil tank, pump, filters, cooler, and piping.

Fill the system with the recommended type and quantity of lubricant.

Perform a system check to ensure no leaks and proper oil flow to all lubrication points.

9. Hydraulic System Installation (if applicable):

For crushers with hydraulic adjustments or tramp release, install the hydraulic power unit, cylinders, and piping.

Fill with the specified hydraulic fluid and bleed the system to remove air.

10. Electrical System Connection:

Connect all electrical components, including the motor, control panel, sensors, and safety interlocks, according to the wiring diagram.

Ensure all connections are secure and grounded properly.

11. Feeder and Discharge Chutes:

Install the feeder mechanism (e.g., vibratory feeder) above the crusher.

Position the discharge chute below the crusher to direct the crushed material to the next processing stage.

12. Pre-Operational Checks:

Final Inspection: Double-check all bolts for tightness, especially anchor bolts.

Lubrication: Verify all lubrication points are adequately filled.

Clearances: Check for proper clearances between moving parts.

Rotation: Manually rotate the crusher (if possible) to ensure smooth movement without obstruction.

Safety Guards: Install all safety guards and ensure all emergency stop buttons are functional.

No-Load Run: Perform a no-load test run to check for unusual noises, vibrations, or overheating.

13. Commissioning:

Gradually introduce material to the crusher, starting with a small feed rate.

Monitor crushing performance, power consumption, and product size.

Adjust the crusher setting (CSS - Closed Side Setting) as needed to achieve the desired product specifications.

The above is all about the installation of cone crusher. Cone crusher is a compression device that crushes materials by squeezing or compressing them between moving steel blocks and fixed steel blocks. If you encounter any problems during the installation process, you can contact the manufacturer at any time for processing. Of course, you can also write to us for consultation.
